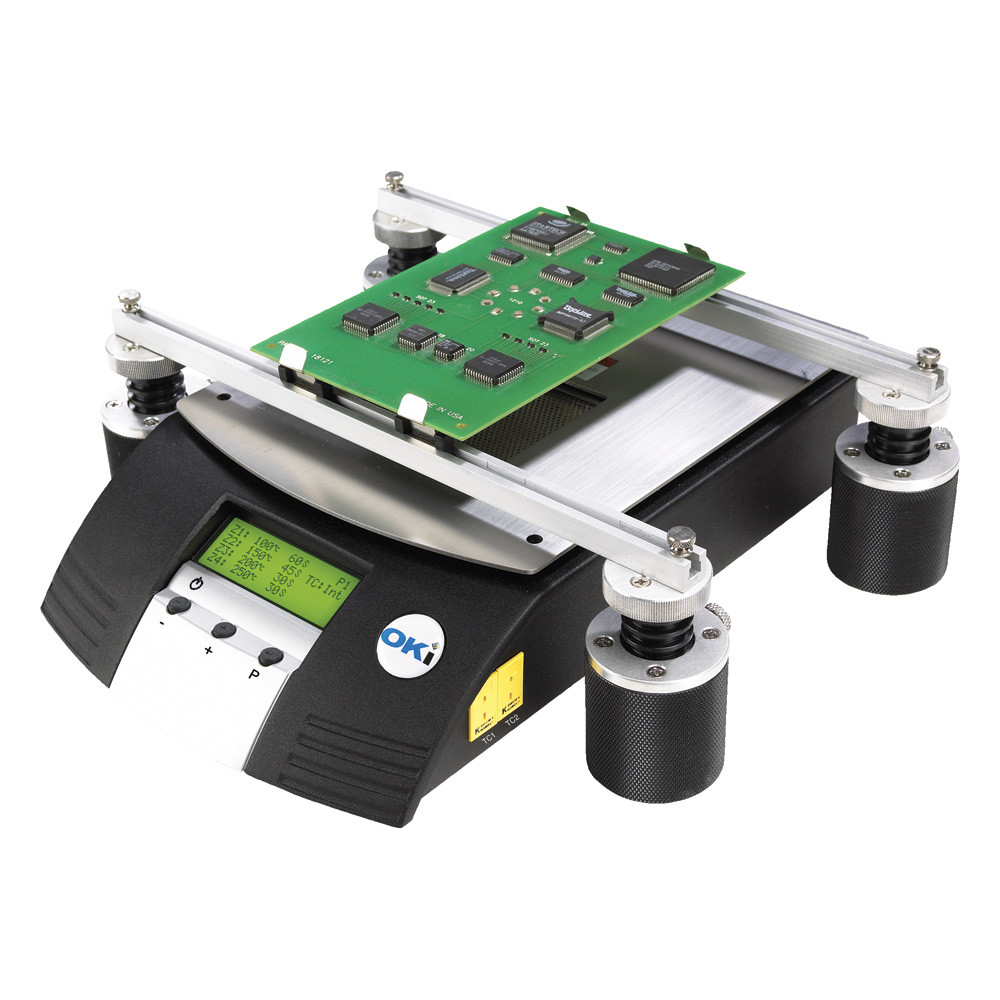

OKi PCT-1000 preheating plate, complete

The programmable PCT-1000 hot-air underheater offers high heating power even for thermally demanding PCBs. The actual soldering process can be performed at significantly lower temperatures than before. It is ideally suited for soldering, desoldering, and SMD applications on lead-free multilayer PCBs or PCBs with high ground connectivity, and ensures a short heating time thanks to precise control. The PCT-1000 hot-air bottom heater directs heat, at the set temperature, precisely to the location where the component to be reworked is placed on the PCB. At the same time, the entire PCB is heated evenly to prevent stress. Processes such as lead-free soldering, desoldering through-holes, and rework with hot air can thus be performed with greater process reliability, and damage to components and PCBs is prevented.- Temperature control: Internal thermocouple or external Type K thermocouple - Airflow fixed at 538 liters/min - Profile storage: Up to 50 thermal profiles - 1 programmable convection bottom heater - 1 Type K thermocouple set - 1 power cord - 1 user manual - 1 detailed user manual
