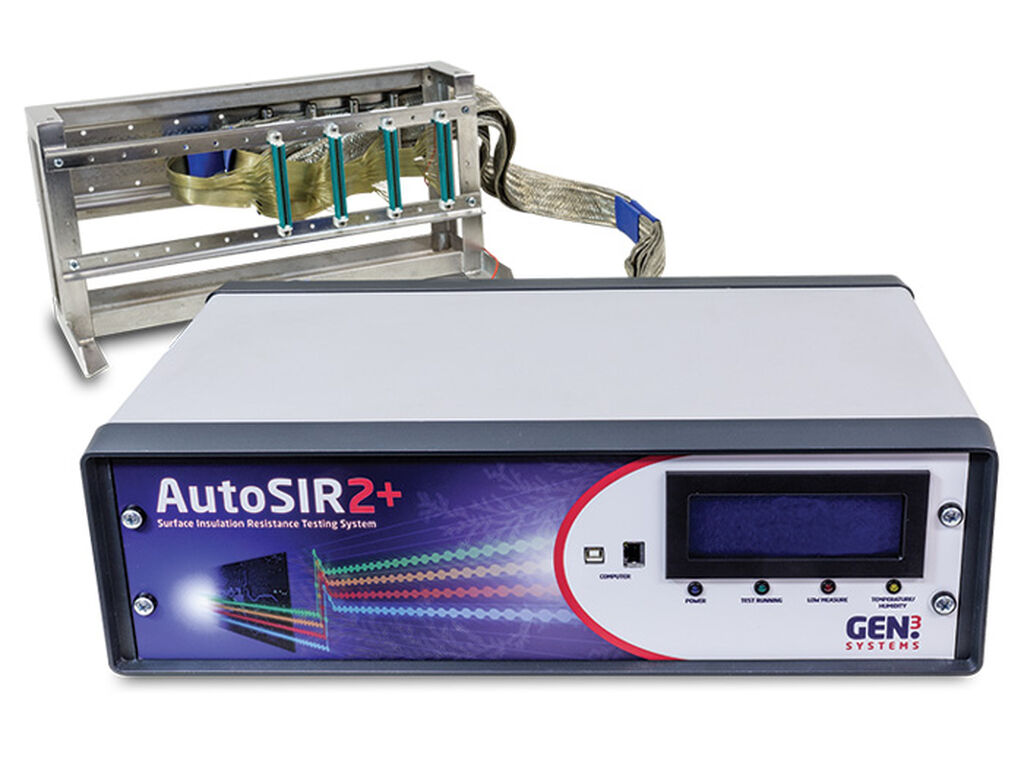

AutoSIR2+

SIR measurement

The new AutoSIR2+™ system represents a dramatic improvement over existing SIR test alternatives, and its shielded precision electronics allow state-of-the-art accuracy resistance measurements to be made up to 1014 ?.

• Measurements from all 256 Channels can be taken in <30 seconds
• Applied Voltage: +1V to 100V
• Measurement Range: 10⁶ ? to 10¹⁴ ?
• Measurement Method: Continuous on all selected channels
• Measurement Test Intervals: Fully selectable from a minimum of 1 minute
• Capable of testing to all existing test specifications – IPC – IEC – JNC and other user specifications
• Future-proofed design
• AutoSIR2+ is available with 64, 128 or 256 channel configurations
• On connection, the system runs a self-test
• Adaptable and flexible software operating with Windows 7, 8 &10
