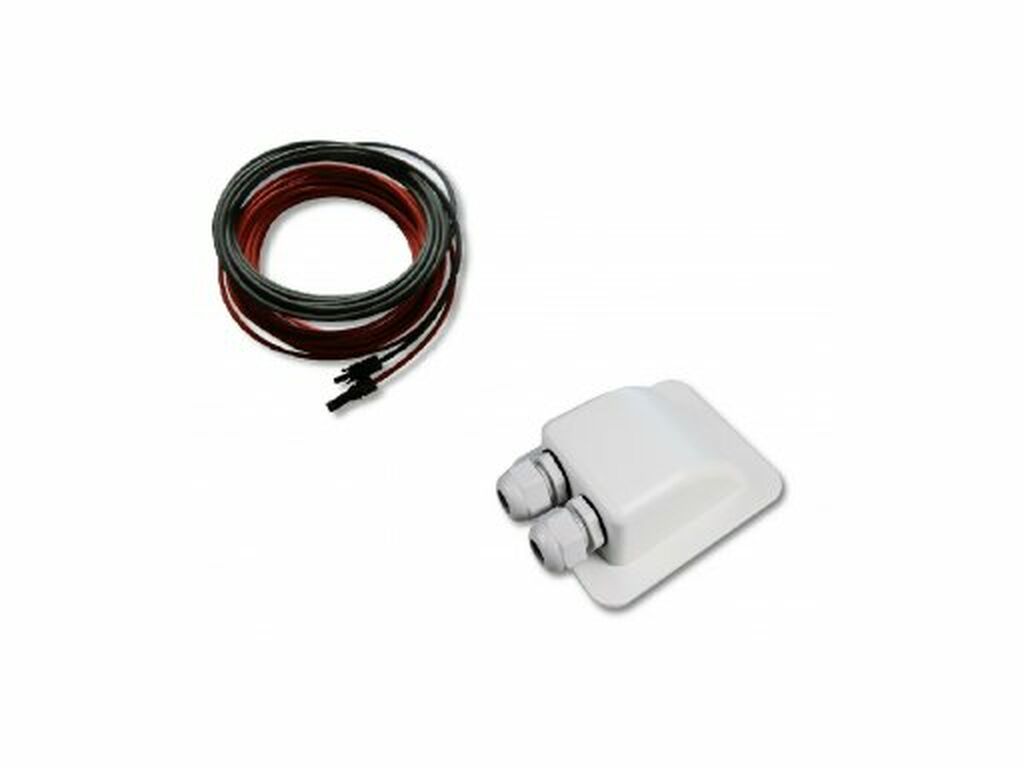

Cable entry 2-way, white, incl. cable 2 x 5m 4mm².

Cable entry Cable entry 2-way made of plastic (ASA) - color: white, incl. Solar cable kit 2 x 5 m For the waterproof roof entry of solar cables on caravans, caravans, cars, etc., glued with a suitable special glue. Cable penetration for two penetrations, made of high quality plastic. The material used (Luran) comes from BASF and is characterized by excellent weather resistance. The material can withstand extreme heat and rain. The cable entry is glued to the vehicle roof with special glue. We recommend placing the roof duct under the solar module to ensure the longest possible service life. For cable diameters of 5-9 mm. Cable 2 x 5 m solar cable - set - 1 x 4 mm - color: red, black (single core) For connection from solar module to solar charge controller. Pre-assembled on one side with C4 connectors. Flexible Lightly peeled Halogen-free according to EN 50267-2-1 and EN 60684-2 Ozone and UV resistance Flame retardant according to EN 60332-1-2 Application: Cable for fixed and flexible connection of solar panels Nominal voltage Uo/U: 0.6/1 kV AC max. 1,8 kV DC Test voltage during production: 10.000 V DC Short-circuit temperature: 200 C Minimum bending radius: 5 x D Temperature range: outdoors / environment -40 C to 90 C, max. Conductor temperature 120 C for 20,000 hours Approvals: TÜV Conductor: tinned copper conductor according to class 5 / IEC 60228 Core insulation: special XL-HFFR compound Outer jacket: special XL-HFFR co-found, color: black.
