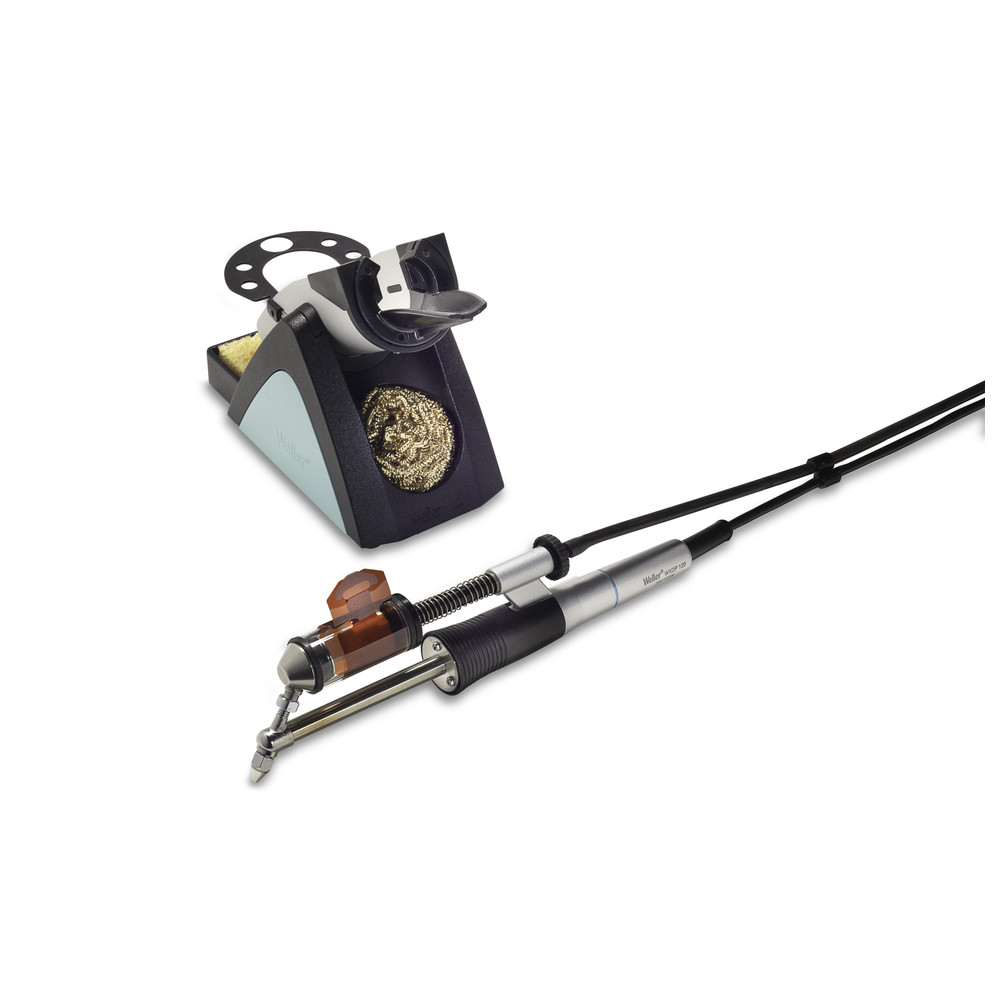

Desoldering iron WXDP 120, with shelf WDH70

The WELLER WXDP 120 desoldering iron is a fast and powerful high-performance desoldering iron. It is used for connection to the WXD 2 soldering/desoldering station. The WXDP 120 desoldering iron is particularly suitable for reworking and repairing SMD or conventionally assembled PCBs. The heat-up time is just 35 seconds. Its high-quality sensor and heat transfer technology ensures precise temperature control. Thanks to the sensor, the desoldering iron only switches on when there is movement. This means that energy is only consumed when it is actually in use. The extraction process with the suction nozzles is triggered by pressing the finger switch. The tin collection container consists of a glass cylinder with filter. The quick and easy replacement of the glass cylinder minimizes the maintenance effort of the desoldering iron. The handle, supply cable and vacuum hose are made of antistatic material and complement the high quality standard of the desoldering iron. The WXDP 120 is equipped with usage detection and can be automatically switched to standby mode or off when not in use. compatible with supply units WXD 2 and WXR 3 - desoldering iron set with eccentric attachment - short heat-up time and set-back function - soldering tip can be changed with one hand - programmable, intelligent WX desoldering iron - usable tip family XDS, XDSL - version:with tray WDH70 - 1 piece desoldering iron WXDP 120 - 1 piece suction nozzle XDS 1, inner Ø 1.4 mm, outer Ø 2.5 mm - 1 piece safety tray WDH 70 (only for 801221) - 1 piece suction nozzle XDS 5, inner Ø 1.8 mm, outer Ø 3.3 mm (only for 801221) - 1 piece suction nozzle XDS 3, inner Ø 1.0 mm, outer Ø 2.3 mm (only for 801221) - 1 piece operating instructions
