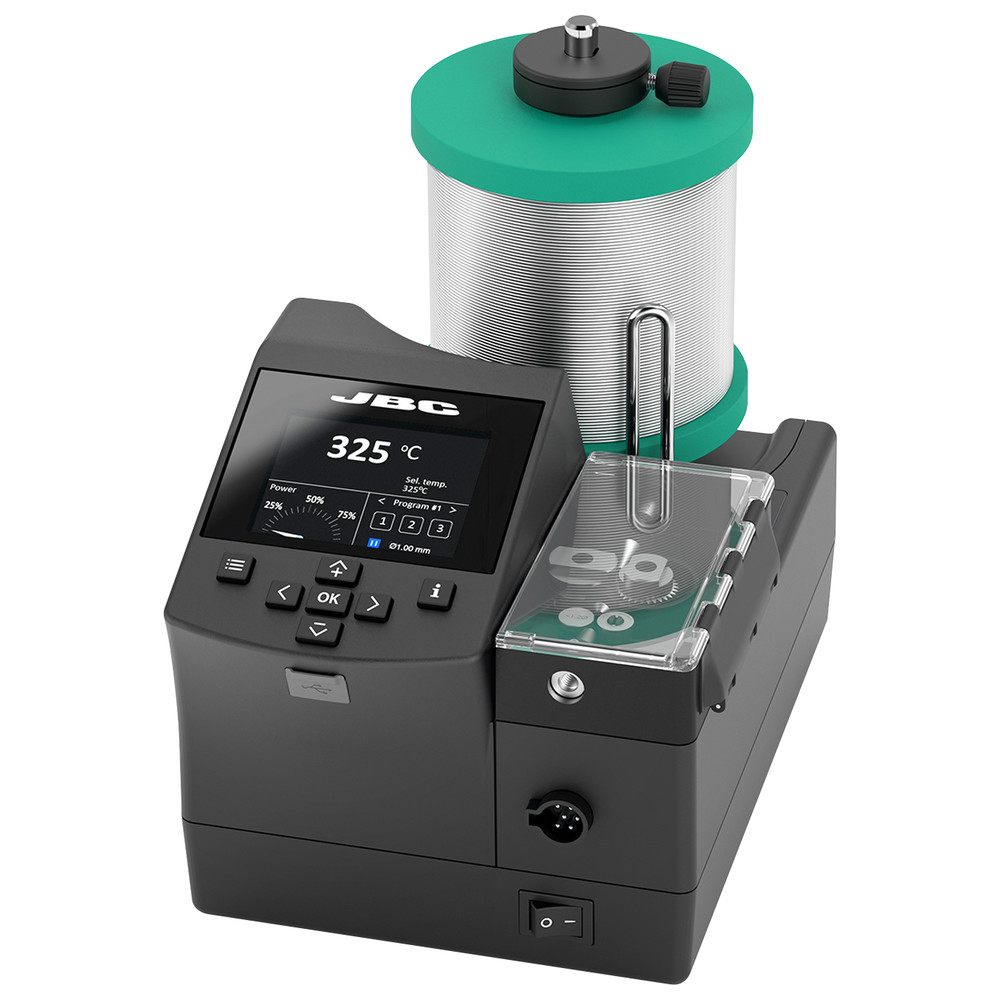

Digital control unit ALE-210UVA

The ideal solution for soldering work where you need to have your hand free. The soldering station works with the convenient ALE250 auto-feed soldering iron and the C250 cartridge series. The new, improved 7-button keypad can be used to configure parameters such as the speed and length of the soldered wire. Thanks to the integrated counter, solder consumption can also be monitored. In ´Continuous Mode´´, the solder wire is fed while the button is held down. In ´´Discontinuous Mode´´, the speed and amount of solder wire fed with each click can be configured. In ´´Program Mode´´, the operator can configure three consecutive feed steps to achieve a more dynamic and efficient soldering. Up to five programs can be set. The solder wire feeder is equipped with a small blade that perforates the solder wire to the flux core during feeding. This perforation process enables a better flow of flux and better outgassing, which prevents solder and flux from splashing during soldering. - with automatic solder wire feed - three adjustable working modes - intelligent heat management - user-friendly operating menu - connection options for JBC extraction systems and foot pedal to achieve the best soldering results - without switching off the station, various soldering jobs can be carried out safely in just a few seconds - compatible with solder wires from Ø 0.4 mm to Ø 1.8 mm, using the corresponding solder wire guide set - C250 soldering tip family - 1 piece ALE control unit - 1 piece GALE10V solder wire guide set - 1 piece operating instructions´
