Metriso 3000, ESD, measuring kit complete, with electrodes 850

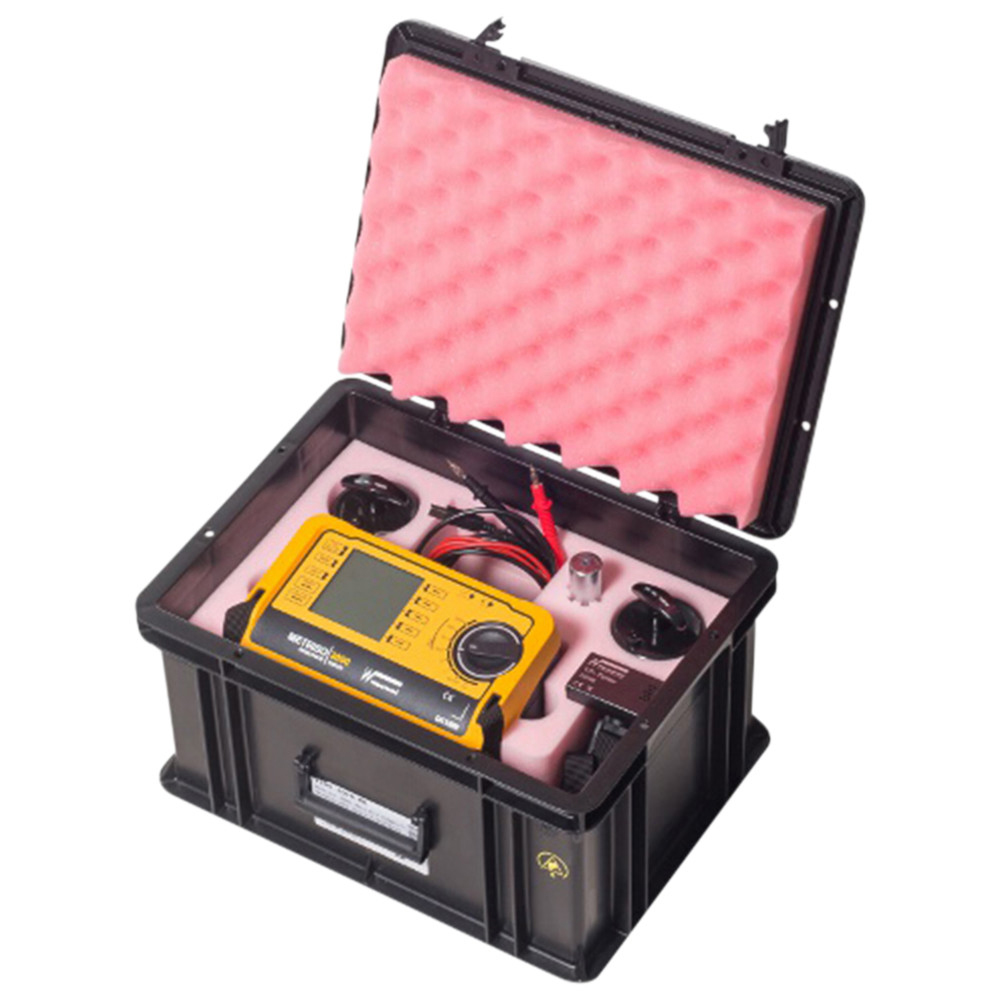

The Metriso 3000 measuring kit consists of the Metriso 3000 digital high-ohmmeter with attachable temperature and humidity sensor as well as two measuring electrodes, a hand electrode and a conductive carrying case with dissipative pink foam. for measuring point-to-point and leakage resistances in accordance with DIN EN 61340-4-1 and DIN EN 61340-2-3 (VDE 0300 Part 4-1 / 2-3) - for measuring the system resistance of people/shoes/floor system in accordance with DIN EN 61340-4-5 (VDE 0300 Part 4-5) - integrated data memory enables the storage of 50.000 measured values, which can be read out via a USB interface to the PC - plug-in temperature and humidity sensor - display language selectable between German/English/French/Spanish - logging software ´´ETC´´ for data acquisition, logging and management - menu-guided measurement with selection of the ESD control element and automatic specification of limit values - the use of a barcode scanner enables measuring points to be recorded automatically before measurement - low ohm measuring range 1 Ohm-10 kOhm for checking earthing measures - built-in 10 MOhm resistor for testing the device before a measurement - version:Measuring kit complete, with electrodes 850 - 1 piece digital high ohmmeter Metriso 3000 - 1 piece USB cable (only 860635/804642) - 1 piece software ´´ETC´´ on CD-ROM (only 860635/804642) - 1 piece temperature and humidity sensor (only 860635/804642) - 2 pieces measuring electrodes model 850 according to DIN EN 61340-4-1/2-3 (only 860635) - 1 piece measuring electrodes model 870 according to DIN EN 61340-4-1/2-3 (only 804642) - 1 piece hand electrode model 45 according to DIN EN 61340-4-5 (only 860635/804642) - 1 set of measuring leads - 1 piece conductive carrying case (only 860635/804642) - 1 piece operating instructions German/English/French
