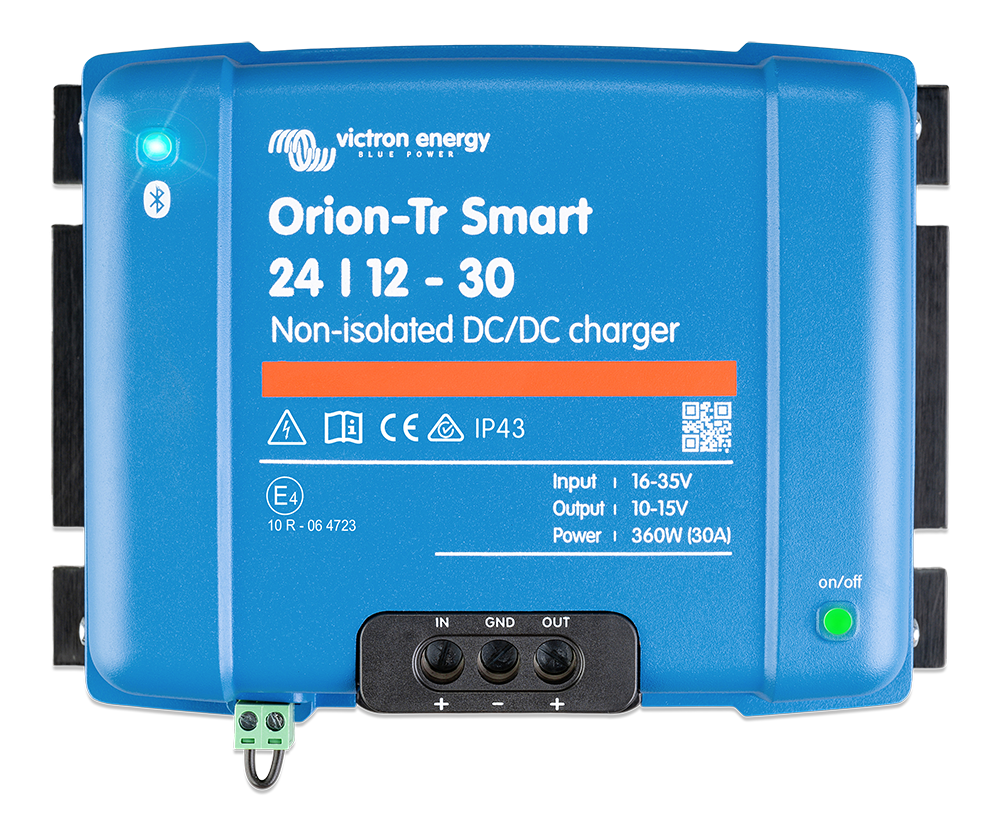

Orion-Tr Smart 24/12-30A DC-DC charger

Victron Orion-Tr Smart 24/12-30A Uninsulated DC-DC Charger – Powerful, smart and flexible charging
Victron Orion-Tr Smart 24/12-30A –is a non-isolated, intelligent DC-DC charger that provides efficient and precise charging of a 12V battery system from a 24V power source – ideal for use in trucks, cars, motorhomes or industrial power systems. It is designed to work smoothly even in modern vehicles with smart generators, where traditional chargers are not always sufficient.

Main Features:

Bluetooth Smart Integrated: Monitor, configure and update your device remotely via the VictronConnect app on your smartphone or tablet.

Fully programmable: Choose between 3-step charging algorithm (bulk, absorption, float) or fixed output – compatible with all lead-acid and lithium batteries (incl.

Remote controlled off/på: Possibility to control the charger externally via e.g. ignition signal or relay – easy integration into vehicle systems.

Parallel connectable: Several units can be connected in parallel to increase the total output power.

Automatic engine shutdown: The charger can start and stop automatically based on whether the engine is running and protects the starter battery from discharging.

Temperature protection: At high temperatures, the output current is automatically reduced to extend the service life and ensure operational reliability.


Protection classification:

IP43 (mounted with screw terminals down)

IP22 (other mounting positions)


Technical Specifications:

Input voltage: 16–35V DC

Output voltage: 12.2–15V DC (adjustable)

Max output current: 30A

Insulation: Uninsulated (common ground)

Power: Up to 430W

Mounting: Screw terminals – no special tools required


Victron Orion-Tr Smart 24/12-30A is the right choice for those who need a powerful, customizable power supply;a powerful, adaptable and smart DC-DC charger in harsh environments where galvanic isolation is not a requirement, perfect for both professionals and advanced DIYers.
