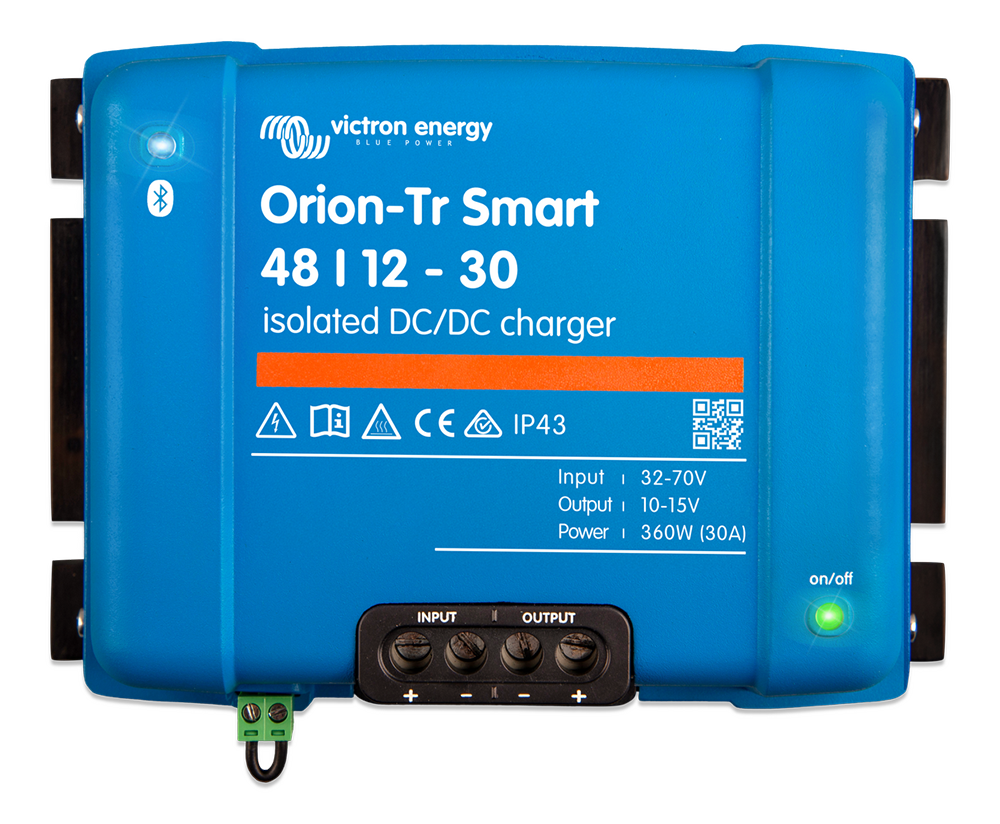

Orion-Tr Smart 48/12-30A DC-DC charger
€273.70 per ORI481238120
- For large quantities - ask for quotation
- sales@etronix.se
Description
Article no.: BAT-ORI481238120
Victron Orion-Tr Smart 48/12-30A Isolated DC-DC Charger – Robust, intelligent and ensures voltage conversion
Victron Orion-Tr Smart 48/12-30A is an intelligent DC-DC charger that can be used forprovides stable and safe charging of a 12V battery system from a 48V source, ideal for electric vehicles, industrial applications, marine systems or off-grid applications. It is especially useful when reliable isolation between battery systems is required to prevent shocks and protect critical electronics.
Main Features:
Bluetooth Smart Integrated: Configure, monitor and update the charger remotely via the VictronConnect app from the convenience of your mobile phone or tablet.
Fully programmable: Choose between an intelligent 3-step charging curve (bulk, absorption, float) or fixed output & fully compatible with lead-acid and lithium batteries (incl. LiFePO4).
Galvanically isolated: Provides secure separation between input and output – protects both sides from damage and reduces the risk of ground loop problems.
Remote controlled off/on: Can be controlled by ignition signal, relay or power switch – easy integration into customized electrical systems.
Parallel connectable: Multiple units can be connected in parallel for increased power.
Temperature controlled power: The charger automatically reduces the output current at high temperatures to extend the life and ensure reliable operation.
Protection classification:
IP43 (for vertical mounting with connections down)
IP22 (for other mounting)
Technical specifications:
Input voltage: 40–70V DC
Output voltage: 12.2–15V DC (adjustable)
Max output current: 30A
Power: Up to 360W
Insulation: Galvanically isolated
Mounting: Screw terminals & easy installation
Victron Orion-Tr Smart 48/12-30A is the perfect choice when you need a powerful, safe and flexible DC power supply.and flexible DC-DC charger to convert from 48V to 12V – especially when electrical safety and insulation are in focus.
