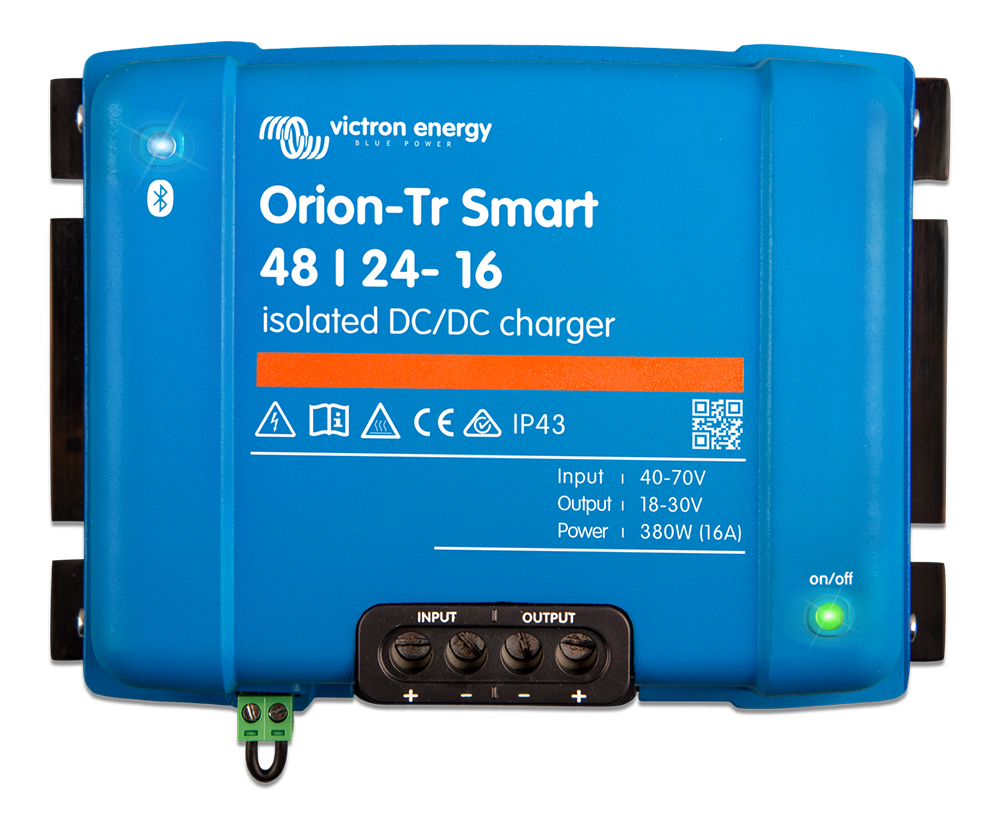

Orion-Tr Smart 48/24-16A DC-DC charger

Victron Orion-Tr Smart 48/24-16A Isolated DC-DC Charger – Stable, safe and programmable voltage conversion
Victron Orion-Tr Smart 48/24-16A is an isolated DC-DC charger that provides the most reliable and reliable voltage conversion.enables a 24V battery system to be charged from a 48V battery or power supply and is ideal for industrial systems, electric vehicles, marine applications and advanced off-grid solutions. It combines Victron's proven reliability with smart technology for easy customization and monitoring.


Key Features:

Bluetooth Smart Integrated: Connect to the VictronConnect app and get full control of settings, status and updates right from your phone.

Fully programmable: Set the charging profile exactly to your battery system and support both lead-acid and lithium batteries with selectable 3-step charging (bulk, absorption, float) or fixed output.

Insulated: Separates input and output electrically – protects critical electronics and prevents accidental ground currents.

Remote controlled off/on: Possibility to connect an external switch or control signal – ideal for vehicles, buses and customized electrical systems.

Parallel connectable: Can be paired with multiple devices to provide total charging power when needed.

Heat protection: The charger automatically adjusts the output current at high temperatures to protect the device and batteries.


Protection rating:

IP43 (when correctly mounted vertically)

IP22 (other mounting methods)


Technical Specifications:

Input power supply: 40–70V DC

Output power supply: 20–30V DC (adjustable)

Max output current: 16A

Power: Up to 430W


Victron Orion-Tr Smart 48/24-16A is a safe and versatile choice for those who need to convert 48V to 24V on the fly; a reliable way – especially in installations where galvanic isolation is a requirement and the long-term stability of the system is crucial.
