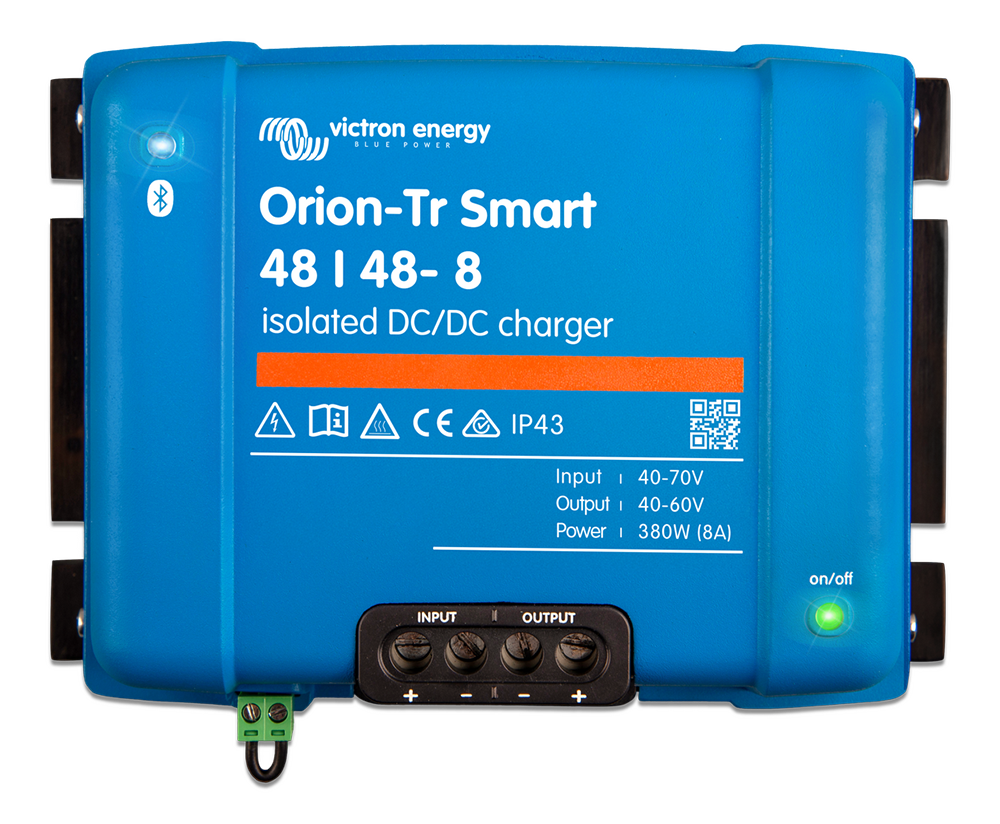

Orion-Tr Smart 48/48-8A DC-DC charger
€274.90 per ORI484838120
- For large quantities - ask for quotation
- sales@etronix.se
Description
Article no.: BAT-ORI484838120
Victron Orion-Tr Smart 48/48-8A Isolated DC-DC Charger – Precision Charging with Maximum Safety
Victron Orion-Tr Smart 48/48-8A is an isolated DC-DC charger that delivers safe and accurate charging between two separate 48V batteries.aring; separate 48V battery systems – ideal for applications where you want to keep starter and consumer batteries electrically separate, such as in electric vehicles, marine installations, telecoms and industrial systems. With Victron's smart features, you get total control over charging, right from your mobile.
Main Features:
Bluetooth Smart Integrated: Easy monitoring and configuration via the VictronConnect app – no additional display or computer required.
Fully programmable: Customize the charging profile to your batteries' needs, supporting both lead acid and lithium, with selectable 3-step charging algorithm (bulk, absorption, float) or fixed voltage.
Insulated: High safety and eliminated risk of ground currents – protects critical equipment and batteries.
Remote controlled by/på: Suitable for external control with signal from e.g. relays or control panels.e.g. relay or ignition – easy integration in vehicles and fixed installations.
Parallel connectable: Need more power? Connect multiple units in parallel to increase capacity.
Temperature protection: Automatic output reduction at high temperatures protects both chargers and batteries.
Protection rating:
IP43 (when correctly mounted vertically with connectors down)
IP22 (when mounted otherwise)
Technical Specifications:
Input power supply: 40–70V DC
Output power supply: 40–60V DC (adjustable)
Max output current: 8A
Power: Up to 430W
Insulation: Galvanically isolated
Mounting: Screw terminals – tool-free connection
Victron Orion-Tr Smart 48/48-8A är the optimal choice for those who need stable and secure DC-DC charging within 48 hours;DC-DC charging within a 48V system & especially in cold environments where galvanic separation is essential for safe operation.
