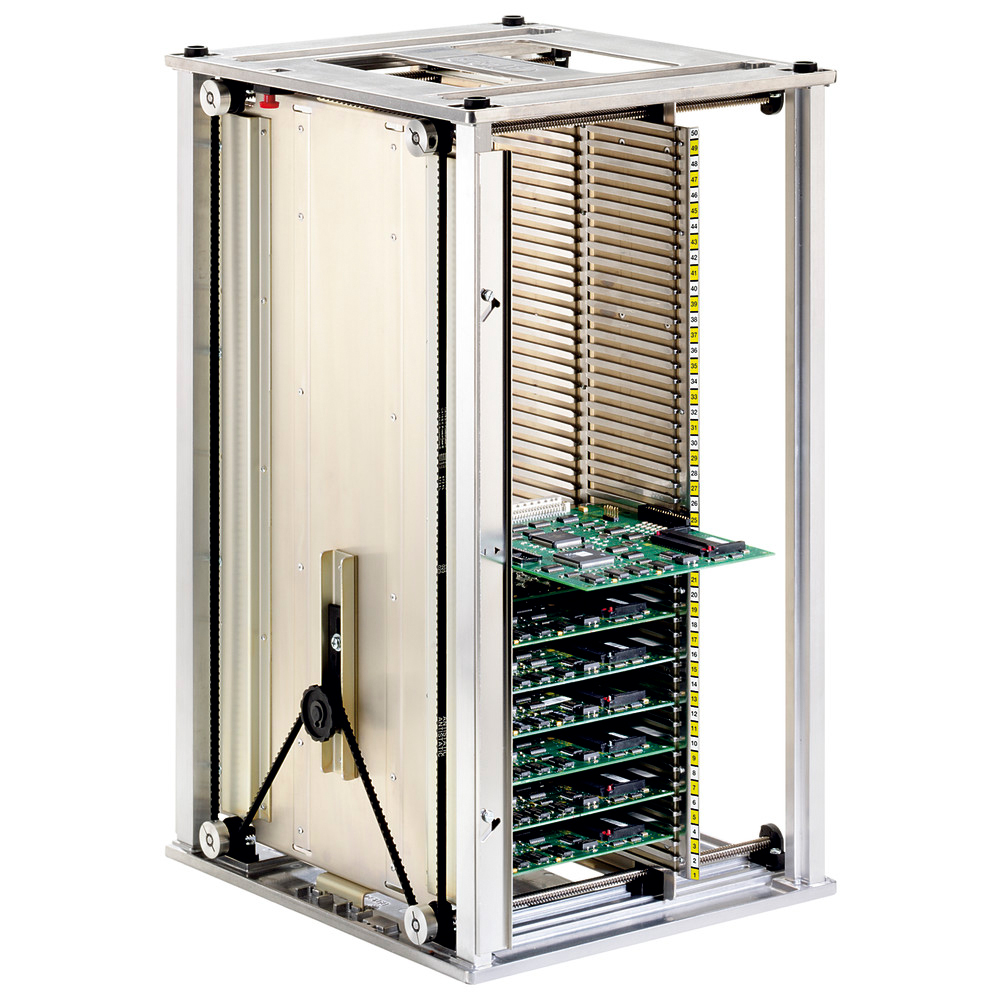

PCB magazine Series 700, 355 x 320 x 563 mm, 701.3/Metal

The sturdy and torsion-resistant frame construction ensures long-term use of the cab magazines in your production. They are made of electrically conductive plastic. For high mechanical and thermal stress, the magazines are also available with metal side walls.- Surface resistance according to DIN EN 61340-5-1 - Accidental adjustment of the movable partition wall is prevented by clamping the toothed belt - Four precision spindles for adjusting the movable partition wall - The partition walls are adjusted to the required PCB width by pulling on the toothed belt - PCB magazines 70X.1 and 70X.2 are delivered partially assembled - PCB magazines 70X.3 are delivered fully assembled with stacking studs - Lid/base made of die-cast aluminum or sheet steel - Stackable - Dimensions L x W x H: 355 x 320 x 563 mm - Type/Material: 701.3/Metal - PCB width min/max/length: 40–250/342 mm - 1 PCB magazine - 1 transport lock (prevents PCBs from sliding through)
