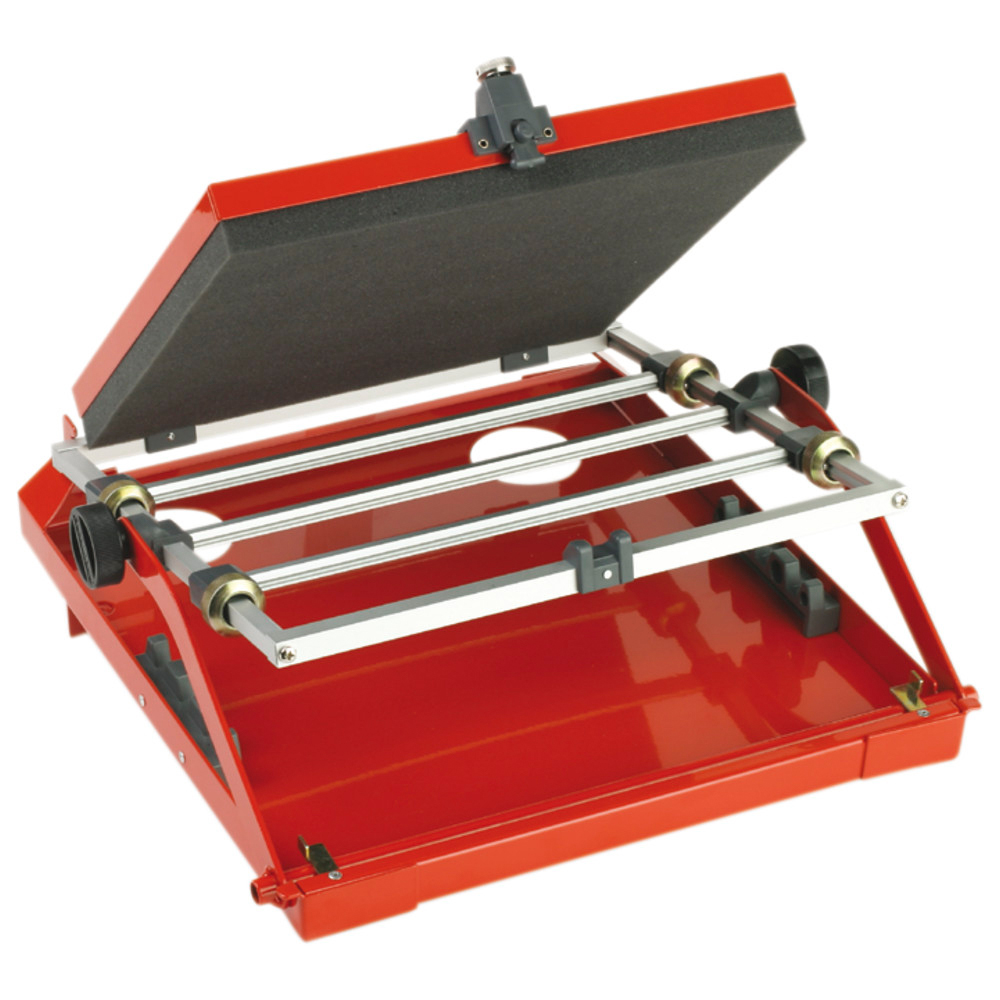

PCSA assembly and soldering frame, 280 x 220 mm, PCSA-1N

For the assembly process, the frame is tilted to a comfortable angle. The circuit boards are then inserted into the adjustable retaining rails. After the components are inserted, they are held in place by the ESD foam pressure plate, and the frame is rotated 180° for the soldering process. PCSA-1 with two adjustable dividers, can be equipped with up to four additional center rails. PCSA-2 with two adjustable dividers, can be equipped with up to four additional center rails. PCSA-4 with two adjustable dividers, can be equipped with up to six additional center rails. - Very easy to disassemble - Lid with ESD foam - Simultaneous assembly of multiple PCB rows with extension rails possible - Usable area: 280 x 220 mm - Type: PCSA-1N
