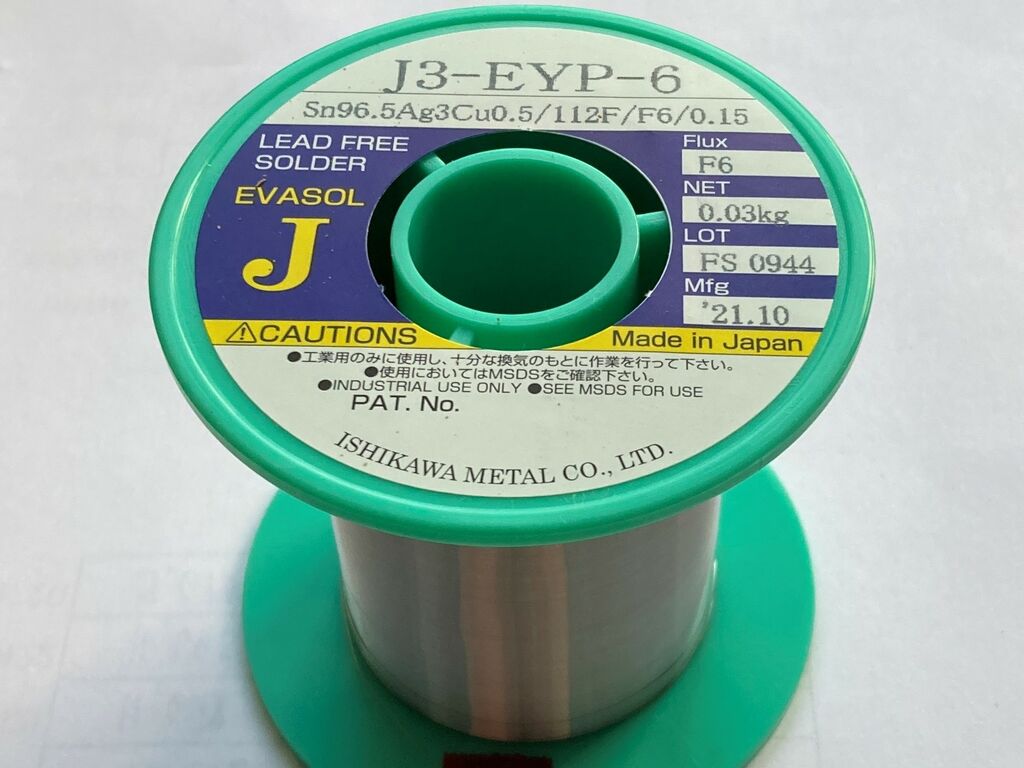

SAC305 Solderwire 0,15mm
€50.70 per piece
Solder Wire-SAC305-0,15mm-ROL0-6%. Ultrathin cored solder wire. Suitable for fine micro pitch manual rework application and for extra fine coaxial harnessing.
- For large quantities - ask for quotation
- sales@etronix.se
- BrandIshikawa
- Diameter0,15mm
- Flux classROL0
- SKUJ3EYP6-0,15-30
- Solid content6%
Description
Article no.: 99-0058
Ultra Fine Cored Solder Wire
SAC305 alloy No-clean Halogen-free ROL-0 flux in 1 core 6% Suitable for fine micro pitch manual rework application and for extra fine coaxial harnessing. Available in different diameter sizes 0,1 and 0,15mm to fit different small footprint SMT components Generally, a solder wire diameter of 0.2 mm works well for 0402 components. For smaller components, you will need a thinner cored wire. Also available for wire feeding in robotic soldering and also for laser soldering. In this case pls ask for bigger spool sizes.
Special features:
Good spread
Less carbonizing of tip
Less spattering of flux
No shrinkage defect
Leaves no post soldering residues
Specification: Alloy:
SAC305 (Sn96,5Ag3,Cu0,5)
Flux type: ROL0 (IPC J-STD-004)
Flux content: 6,0%
Solidus temp: 217ºC
Liquidus temp: 220ºC
SAC305 alloy No-clean Halogen-free ROL-0 flux in 1 core 6% Suitable for fine micro pitch manual rework application and for extra fine coaxial harnessing. Available in different diameter sizes 0,1 and 0,15mm to fit different small footprint SMT components Generally, a solder wire diameter of 0.2 mm works well for 0402 components. For smaller components, you will need a thinner cored wire. Also available for wire feeding in robotic soldering and also for laser soldering. In this case pls ask for bigger spool sizes.
Special features:
Good spread
Less carbonizing of tip
Less spattering of flux
No shrinkage defect
Leaves no post soldering residues
Specification: Alloy:
SAC305 (Sn96,5Ag3,Cu0,5)
Flux type: ROL0 (IPC J-STD-004)
Flux content: 6,0%
Solidus temp: 217ºC
Liquidus temp: 220ºC
