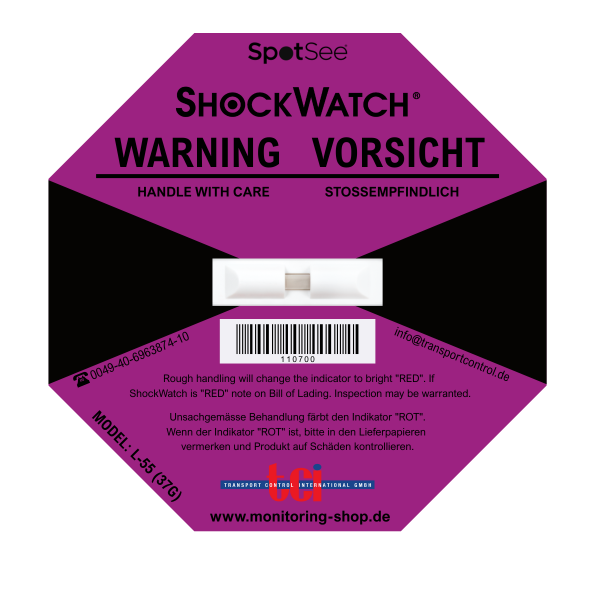

ShockWatch L-55, violet, 37 g / 50 ms

The ShockWatch L55 violet 37g / 50 ms is used for transport monitoring of packages in the medium weight range from 20 kg to 450 kg. The typical maximum package volume (L x W x H) for the ShockWatch L55 is between 0.2^m3 and 1.3^m3.

Please note that, for physical reasons, the ShockWatch L55 may no longer function properly and as expected above the specified weight limit of 450 kg. An alternative product for weights of more than 450 kg is the ShockWatch L65 with 25g or, depending on the given weight, the ShockWatch Label L75 or L85. You can find more information on the relevant product pages or call us for advice.

• Machines and machine components
• optoelectronics
• Medical/electronic devices
• measuring instruments
• Products from the automotive sector
• Telecommunication products
• Computer and server technology
• and many more

Application and selection of the right ShockWatch indicator

Choosing the right indicator: To ensure that the ShockWatch indicators do not trigger too early or too late, it is important to select the right indicator for the transportation monitoring of your package. The following table offers you a differentiated selection option to suit your individual requirements

The starting point for selecting the right ShockWatch indicator is the size of the package in cubic meters (L x W x H) and the total weight (including packaging) of your package. Select the weight range in the left-hand column and the volume range in the top line. Extend both fields with an "imaginary line" and read off the corresponding sensitivity value. The determined color field represents the respective g-value. Small delivery note sticker: Each Shockwatch label comes with a small delivery note sticker, which is included in the packaging of the Shockwatch indicators. Simply stick it on your delivery bill to provide an additional reference for checking the ShockWatch label on the package when the goods are accepted by the carrier or end customer.

General function of ShockWatch indicators

All ShockWatch labels offer a simple and very effective way of avoiding or reducing transport damage. A color change of the ShockWatch indicator from white to red clearly and immediately indicates to everyone that the handling instructions have not been observed and that there is a possible transport damage caused by a strong impact. The use of ShockWatch indicators is a preventive measure to avoid improper handling during transportation. On the one hand by informing the forwarder before transportation and on the other hand by visibility on the package during transportation, which informs that the goods must be handled with appropriate care. You can find the relevant information in our "Procedural instructions" in the download area.

• Controllable compliance with your handling instructions from production to the end customer
• Not interchangeable due to individual serial number
• Improved basis for selecting the carrier and transport route
• Identification of time, place and person responsible in the event of transport damage
• Reduction of transport damage
• Timely detection of concealed transport damage
• Decreasing complaint rate and therefore lower costs
• Improved product yield
• Transport monitoring of the supply chain
