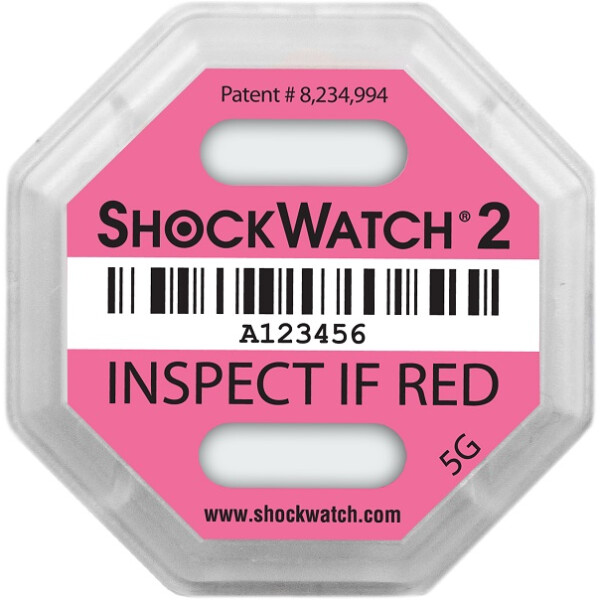

ShockWatch2 pink, 5g

ShockWatch 2: mechanical shock indicator for a wide range of applications and weights up to several tons

The Shockwatch 2 is an addition to the well-known Shockwatch Label, which extends the range of applications for low-cost transport monitoring.

The Shockwatch 2 with 5g / 50 ms (pink) has been designed for monitoring very heavy packages weighing up to 14 tons at approx. 300 cubic meters. The conventional Shockwatch labels are only designed for a maximum weight of 1 ton.

Another advantage is the activation of the indicator. Compared to the ShockWatch labels, which are always "active", the ShockWatch 2 is only activated before it is attached to the shipping goods. This enables uncomplicated transportation to the place of use and simplified handling of the indicators before use. They are self-adhesive and are activated by removing the protective film on the back.

The triggering behavior of the ShockWatch 2 is primarily defined for the vertical (perpendicular) impact axis. The label is triggered or discolored in the impact angle range between 45° and 90° to the floor. The label must be attached in such a way that the two indicator windows are at the top and bottom.

Packaging

Carrier confirms the integrity of the ShockWatch 2 when accepting the goods

Receiving department checks the shock indicator on delivery

The carrier must confirm a triggered or missing indicator on delivery and does not receive a pure receipt

After a thorough inspection of the product, a release or transport damage processing takes place

Choosing the right Shockwatch 2 indicator

To ensure that the Shockwatch 2 indicators do not trigger too early or too late, it is important to select the right indicator for the transport monitoring of your package. The following table offers you a differentiated selection option to suit your individual requirements:

The starting point for selecting the right Shockwatch 2 indicator is the size of the package in cubic meters (L x W x H) and the total weight, including packaging, of your package. Select the weight range in the left-hand column and the volume range in the top line. Extend both fields with an "imaginary line" and read off the corresponding sensitivity value. The determined color field represents the respective g-value.

Small delivery note sticker

Each Shockwatch 2 indicator comes with a small delivery note sticker, which is included in the packaging of the Shockwatch indicators. Simply stick it on your delivery bill to provide an additional reference for checking the Shockwatch label on the package when the goods are accepted by the carrier or end customer.
