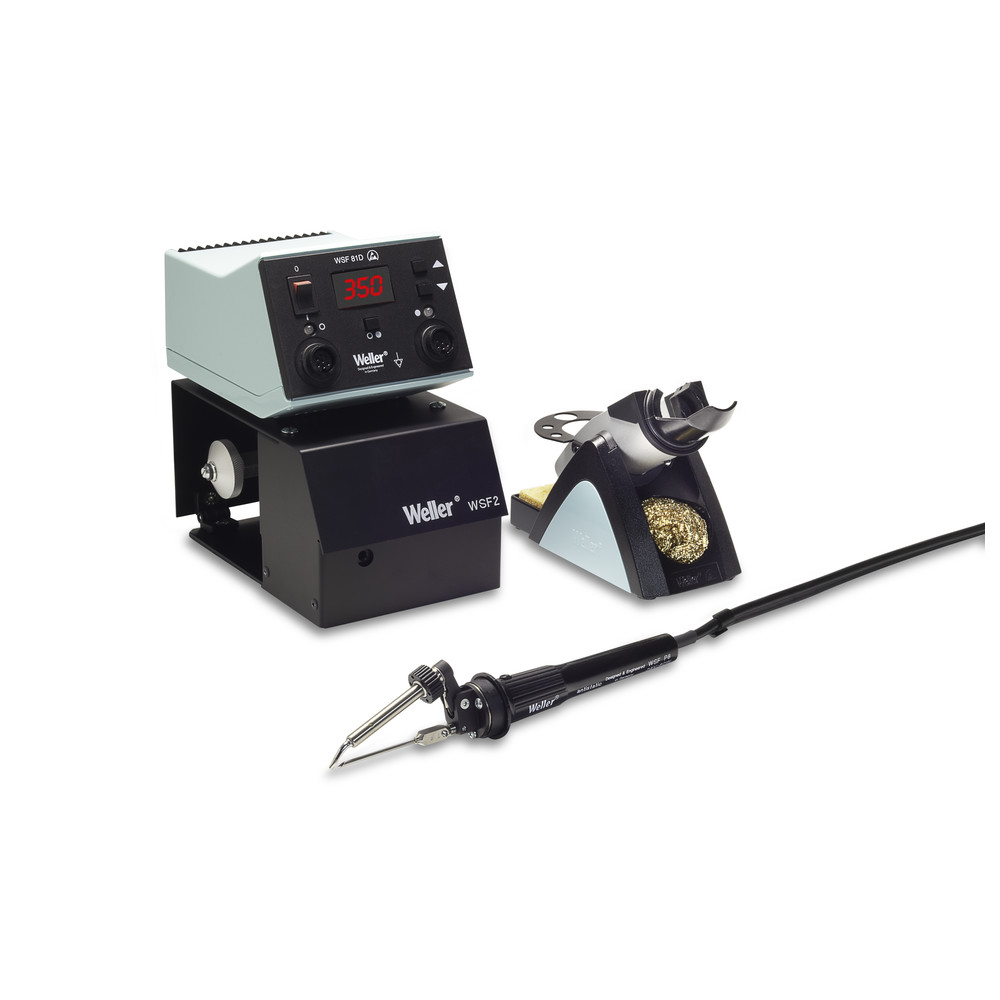

Solder wire feed system WSF 81, D8/0.8-1.5 mm

The WSF 81D is a soldering station with an automatic solder feed system. The solder wire diameters that can be used are divided into two variants. The WSF 81D8 is suitable for solder wire diameters of 0.8-1.5 mm. The WSF 81D5 is suitable for solder wire diameters of 0.5-0.8 mm. The adjustment to the respective wire diameters is automatic for both stations. There are two interchangeable operating modes. By switching the operating mode and adjusting the heating element, you can switch between automatic and permanent solder feed at any time. The control unit contains the digital electronics for temperature control and feed control. The feed unit contains a tin roll holder for rolls up to max. 1 kg. - Switching between automatic and permanent solder feed possible - Precise feed of the solder wire - Automatic adjustment of the mechanical drive to the wire diameter - Ergonomic design - Type/for wire diameter:D8/0.8-1.5 mm - 1 piece WSF 2 supply unit - 1 piece WSFP 8 soldering iron - 1 piece WDH 30 safety rest - 1 piece LT BX soldering tip - 1 piece mains plug - 1 piece operating instructions
