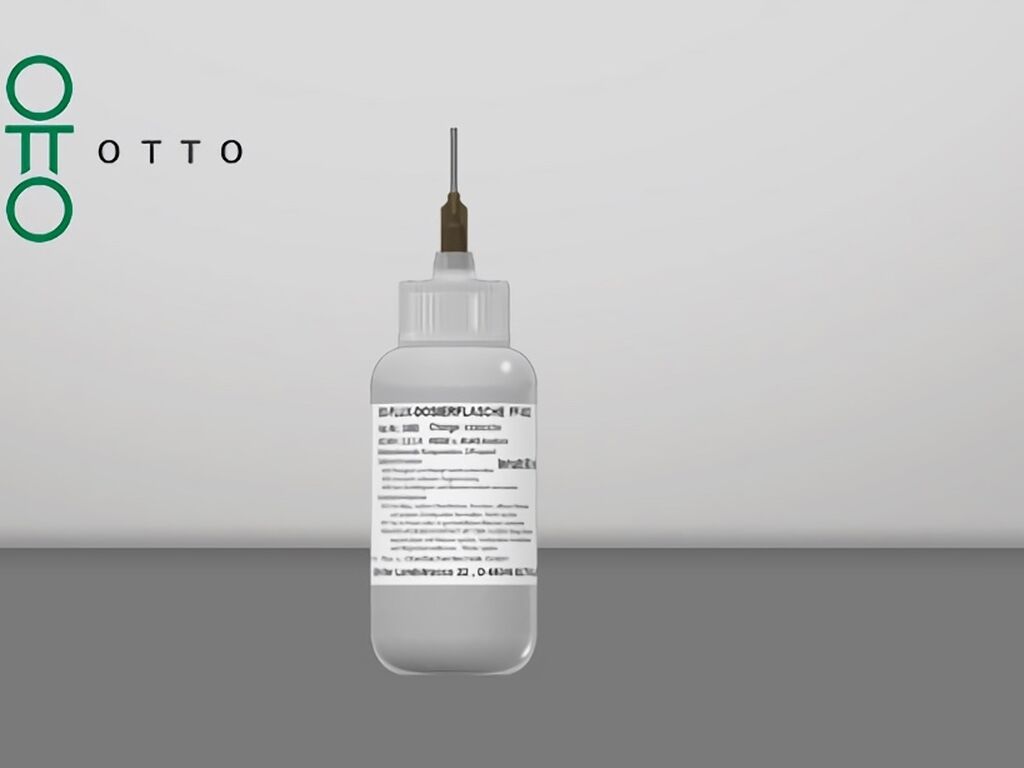

Test flux FF-ST25 (DHC-2)
€13.50 per piece
Flux for solderability test
- For large quantities - ask for quotation
- sales@etronix.se
- BrandEmil Otto
- Flux classROL1
- SKU3887
- Solid content25%
Description
Article no.: 503887
Description
| Application area: | Testing application, Repair soldering, Dip soldering |
| Appearance: | colourless to light yellow, clear |
| Solids content: | 25 Gew.-% |
| Density at 20 °C: | 0.8 (+/- 0.005) g/ml |
| Acid number: | 25–28 mg KOH/g |
| Activators: | di-carboxylic acids, low resin content |
| Solvents: | short-chain alcohols |
| Flashpoint: | 12 °C |
| Durability: | 12 months |
EO-FF-025 is a ROL1 fluxclass variant and can be used for testing of solderability feature aswell as for manual, and dip soldering.
It features a wide processing window and great temperature stability to guarantee a good soldering result.
- Wide range of applications (multiflux)
- Very good soldering properties (capillarity, wetting)
- Broad process window (very high thermal stability, good activity over a long interval)
- Very good residue behaviour (very clean, high SIR)
- Successful passing of internal test (SIR selective)
- Mid solids content
