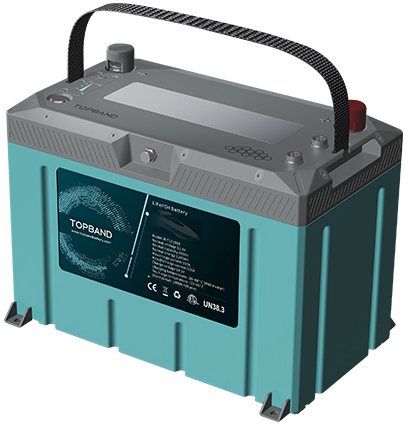

Topband Lithium 12V 100Ah IP67 T-Premium
€607.10 per R-T12100B
- For large quantities - ask for quotation
- sales@etronix.se
- BrandTopband
Description
Article no.: BAT-R-T12100B
Topband Lithium 12V 100Ah IP67 T-Premium – The optimal choice for electric motor operation and recreational use. Topband Lithium 12V 100Ah IP67 T-Premium is a powerful and reliable lithium battery that is specially adapted for anglers, campers and motorhome owners. With high performance, long life and smart features, this battery is the perfect energy source for electric motorization, motorhomes, boats and other consumer systems.
Features and benefits:
Waterproof and safe:
The battery has a ruggedized construction with IP67 rating, making it dustproof and waterproof – ideal for marine use and harsh environments.
Powerful and flexible configuration:
Supports series connection of up to 4 batteries for a 48V system or parallel connection of up to 16 batteries for a capacity of 12V 1600Ah.
Battery Management System (BMS):
Integrated battery management system protects against over- and undercharging, short-circuiting, high and low temperatures and overloading.
Longevity:
Cleans approximately 6000 cycles at 80% discharge, providing up to 15 years of operation – significantly longer than traditional lead acid batteries.
Bluetooth monitoring:
Check the status of your battery via an app (TB Battery) directly in your smartphone. Download the TB Battery app: Available in the App Store and Google Play.
Code 5678 is used to change the name. Code 1234 is used to see the volume in the cells. See the bottom of the page for the manual of the app.
Low Temperature (Heat):
The battery can be charged and used down to -20°C thanks to the built-in heat foil that activates at low temperatures. Minimum 12A charging current required for normal heating.
LED indicator and power switch:
Easy monitoring of charge status and ability to turn off the battery when needed.
RS485 communication:
Can be integrated with the vehicle's energy system for smooth and efficient management of energy flow.
Perfect for:
Sports fishermen and campers who need a powerful and waterproof energy source for their electric motors.
RV and camping for long-lasting and reliable power supply to consumers.
Solar cell installations and off-grid systems for efficient energy storage are crucial.
Specifications:
Power supply: 12.8V
Capacity: 100Ah (1280Wh)
Max charging current: 80A
Recommended charging current: ≤50A
Max power consumption: 100A (500A/3s)
Charging voltage: 14.2V
Subcharging voltage (Float): 13.8 V
Cycle life: ~6000 cycles at 80% discharge
Operating temperature: -20 °C to 60 °C
Charging temperature: -20 °C to 60 °C
Storage temperature: -10 °C to 60 °C
Recommended storage temperature: 15 °C to 30 °C
Certifications: CE, IEC62619, UL1973, UN38.3, E-mark
Key recommendations:
Generator:
Use a compatible Victron DC-DC or Wakespeed regulator for optimal charging and protection of the generator.
Chargers:
Use only chargers designed for lithium batteries and avoid functions such as "Desulfation" or "Equalize charge".
Solar Cell Controller:
We recommend Victron MPPT for best charging performance. If the regulator is not customized for lithium, please ensure that it can be adjusted to the correct settings.
Long-term storage:
To maximize battery life during long-term storage:
Charge battery to 100% before storage.
Discharge to approximately 80% to reduce stress on the cells.
Connect the battery and turn off via the power switch.
Charge the battery every three months to 100% and then discharge to about 80%.
After winter storage, charge up to 14.2V to balance the cells.
With Topband Lithium 12V 100Ah IP67 T-Premium, you get a reliable and powerful energy solution for all your marine and mobile needs. Experience reliable and long-lasting energy whether you're at sea, camping or out on a trip!
