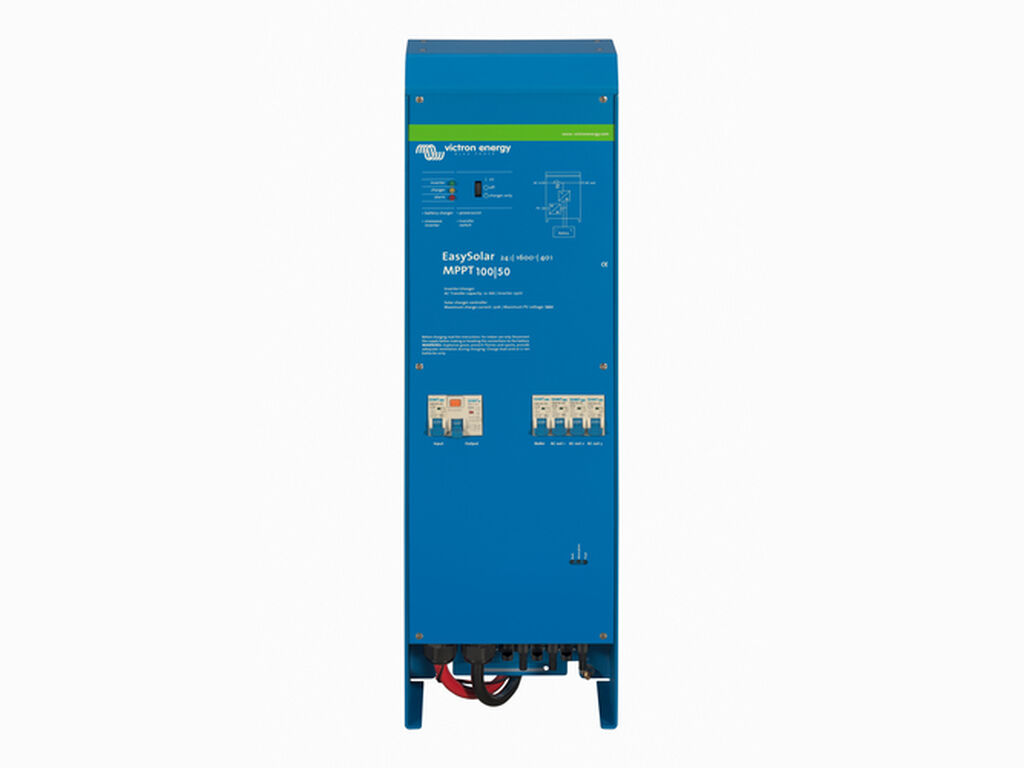

Victron EasySolar 24/1600/40-16 230V MPPT 100/50

Victron EasySolar 24V 1600VA 40A charging current 230V MPPT 100Volt 50A An all-in-one solar energy solution Easy Solar combines an MPPT solar charge controller, an inverter/charger and AC distribution in a single enclosure. The unit is easy to install and requires a minimum of wiring. The PV charge controller: Smart Solar MPPT 100/50 Up to three rows of PV panels can be connected using three sets of MC4 (PV-ST01) PV connectors. Inverter/charger: MultiPlus Compact 24/1600/40 MPPT charge controller and MultiPlus Compact inverter/charger share the DC battery cables (included). The batteries can be charged by solar cells (SmartSolar MPPT) and/or by AC power (inverter/charger) from the grid or from a genset. AC distribution The AC distribution consists of an RCD (30mA/16A) and four AC outputs protected by two 10A and two 16A switches. One 16A output is controlled by AC input: only turns on when AC power is available. PowerAssist The unique Power Assist technology protects the grid or generator input from overloading by adding extra inverter power when needed.
