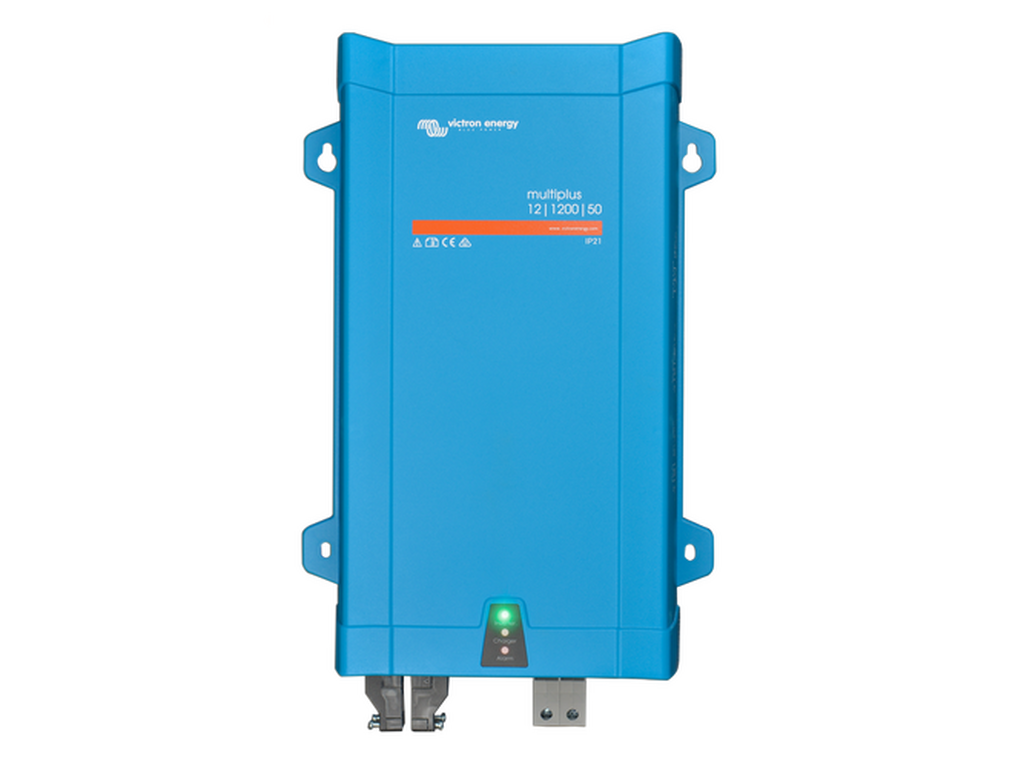

Victron MultiPlus 12/1200/50-16 230V VE.Buss

Victron MultiPlus 12v 1200VA 50A charging current 230V VE.Buss The MultiPlus is a powerful pure sine wave converter, a sophisticated battery charger that includes a customizable charging technology and a high-speed AC transfer switch in a compact enclosure. In addition to these primary features, the MultiPlus also has several advanced features, as described below. Parallel operation or three-phase capacity Up to six Multi units can operate in parallel to achieve higher power output. In addition to parallel connection, three units can be configured for three-phase output. PowerControl To manage limited generator, shore or grid power. The Multi Control Panel allows you to set a maximum generator or shore power. MultiPlus will then take into account other AC loads and use any extra current for charging, preventing the generator or shore power from being overloaded. PowerAssist Boost the capacity of shore or generator power. This function takes the principle of PowerControl to a new dimension. It allows the MultiPlus to extend the capacity of the alternative source. As peak power is often only required for a limited period, MultiPlus will ensure that insufficient shore or generator power is immediately compensated with power from the battery. When the load decreases, the excess current is used to recharge the battery. Customizable four-stage charger and dual battery bank charging. The main output provides a powerful charge to the battery system using advanced and customizable charging software. The software fine-tunes the automatic three-stage process to suit the condition of the battery and adds a fourth stage for longer periods of float charging. The customizable charging process is described in more detail on the Phoenix Charger datasheet and our website, under Technical Information. In addition, the MultiPlus charges a second battery by using a separate maintenance charge dedicated to the main engine or generator starting battery. High starting power Required to start high surge loads such as power converters for LED lamps, halogen lamps or electric tools. Search mode When search mode is activated, power consumption during no-load operation is reduced by approximately 70%. In this mode, the Multin shuts down when operating in inverter mode, in case of no load or very low load, and starts up every two seconds for a short period. If the output current exceeds a set level, the inverter will continue to operate. If not, the inverter will shut down again. Programmable relay By default, the programmable relay is set as an alarm relay, i.e. the relay will be de-energized in case of an alarm or a pre-alarm (inverter is almost too hot, hum voltage on the input is almost too high, battery voltage is almost too low). Remote controlled on and off. Three-pole connection On-site configuration, monitoring and control of the system After installation, the MultiPlus is ready for use. Some settings can be changed with DIP switches. 500/800/1200 VA models: remote switch / battery charging voltage / inverter frequency / search mode. 1600/2000 VA models: battery charging voltage / search mode. Use VEConfig or VE.Bus Smart dongle for more settings. Remote configuration and monitoring Install a Cerbo GX or another GX product to connect to the internet. Operating data can be stored and viewed on our free Victron Remote Management (VRM) website. When connected to the internet, systems can be accessed remotely and settings can be changed.
