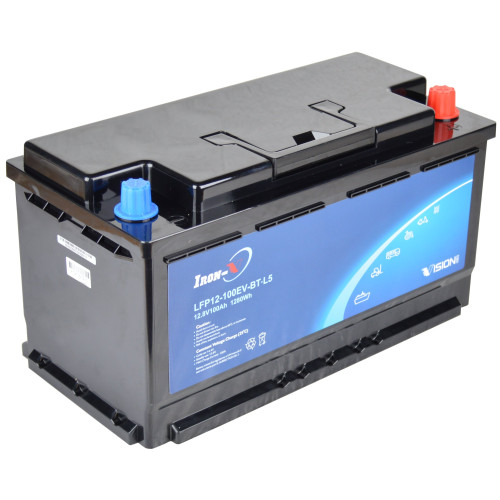

Vision Lithium 12V 100Ah Bluetooth
€435.50 per LFP12-100BDIN
- For large quantities - ask for quotation
- sales@etronix.se
- BrandVision
Description
Article no.: BAT-LFP12-100BDIN
Vision Lithium Iron-V 12V 100Ah LiFePO4 – Powerful Lithium Battery with Bluetooth
Vision Lithium Iron-V 12V 100Ah är a high-performance and på battery;high-performance and reliable lithium iron phosphate (LiFePO4) battery that is ideal for motorhomes, caravans, boats, electric vehicles, energy storage and holiday homes. With advanced technology and smart features, this battery offers an efficient and secure energy supply for all your needs.
Advanced Bluetooth monitoring
Check your battery status in real time via your smartphone or tablet. With the built-in Bluetooth feature, you'll get detailed information on:
Power and charging status
Temperature
Cycle count and performance
The app is available for download via Google Play and App Store (Vision GA).
Specifications:
Max continuous charge current: 100A
Max continuous discharge current: 100A
Peak discharge current: 200A (15 seconds)
Recommended charging current: 50A
Recommended charging voltage: 14.4 - 14.6 V
Recommended maintenance voltage (Float): 13.6 - 13.8 V
Discharge temperature: -20 °C to 55 °C
Charging temperature: 10 °C to 60 °C
Cycle life: Up to 3000 cycles at 80% discharge
Compatibility and Recommendations:
Series/Parallel Connection:
Max 4 batteries can be connected in series or parallel. Charge batteries separately with external charger to same voltage level (max 0.2V difference) before paralleling.
Generator:
Lithium batteries require compatible components. Use a Victron DC-DC or Wakespeed regulator to protect the generator and optimize charging.
Battery Charger:
Use a charger specifically for lithium batteries. Make sure the charger does not have "Desulfation" or "Equalize charge" which can raise the voltage to 15-16V.
Solar cell controller:
Victron MPPT is recommended for optimal charging. If the regulator is not adapted for lithium, please ensure that it can be adjusted to the correct settings.
Steps for long term storage of Lithium battery:
Charge Battery to 100%
Before you put your RV or boat away for the winter, make sure to fully charge the battery. This will ensure that the battery is ready to withstand a longer period without charging and that the cells are in balance.
Discharge to 80%
For long-lasting storage, it is recommended that the battery is kept at around 80% charge. This reduces the stress on the battery cells.
Disconnect the Battery
Use a battery disconnector or disconnect the negative terminal of the battery to avoid standby consumption by electronic systems.
Storage Location and Temperature
Lithium batteries can be stored in temperatures down to -10°C. Recommended storage temperature: 15–35°C.
Recharge after three months
Fully charge the battery and then discharge the battery to about 80%.
Charging after Winter Storage
When winter is over and you are going to use theuse the battery again, fully charge it to 14.4-14.6V to balance the cells and restore the full capacity of the battery. It may take 1-3 charging cycles for the cells to balance correctly.
Summary:
Endurance Lithium 12V 100Ah Heat-Bluetooth offers reliable performance in a variety of environments, from RVs and boats to industrial applications. With Bluetooth integration features, this battery ensures efficient operation and easy monitoring, making it an excellent choice for long-term use and optimized energy management.
Equivalent in other brands: ELB12-96HEAT, SB12V1200Wh-M, LITH-BLUE1296B100, HEAT-96100BS, EV1250. TB12100BDIN,ELB12-100HEAT-L5,
